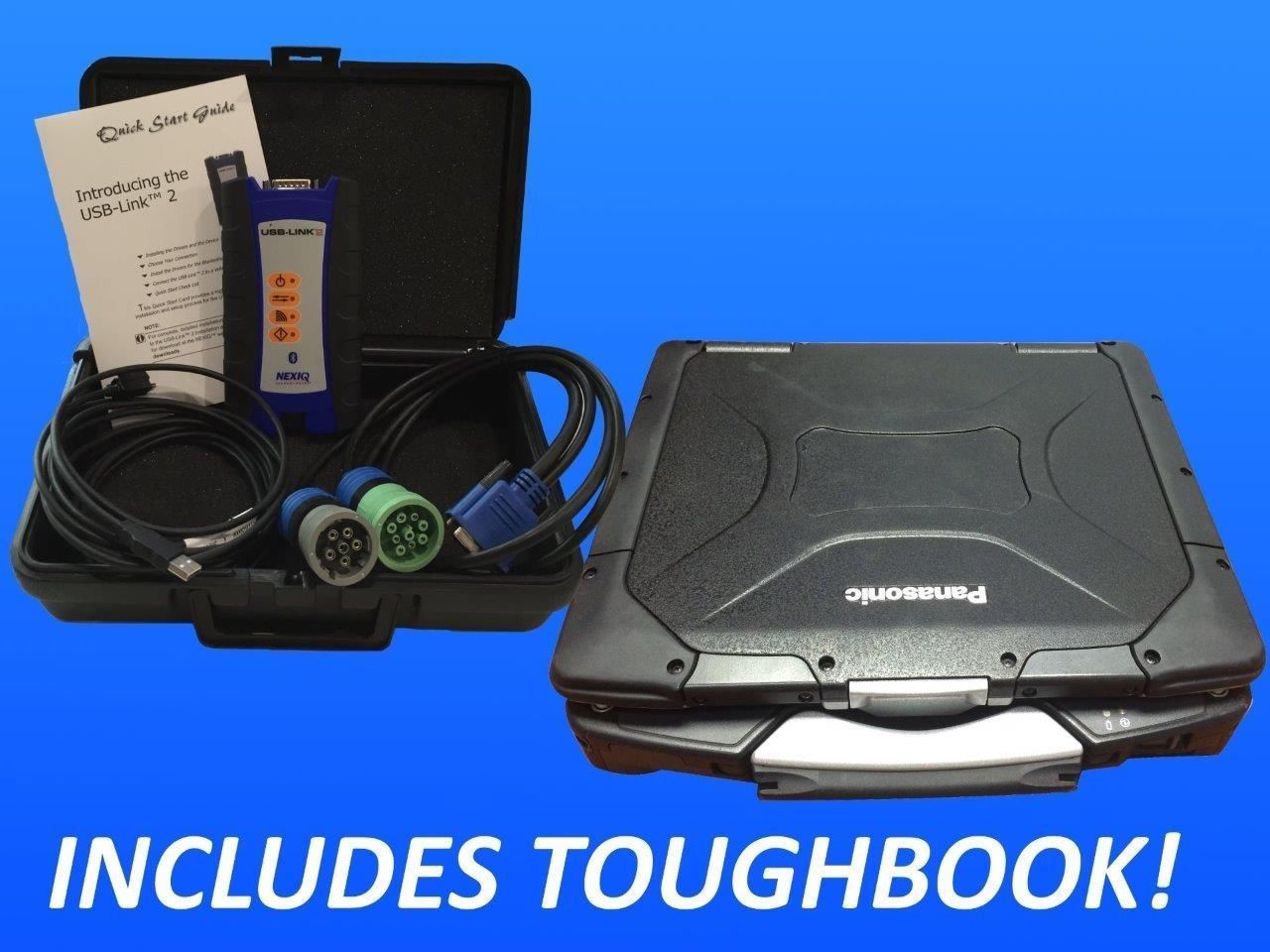

NEXIQ USB LINK TOUGHBOOK PACKAGE with Universal Heavy Duty Full Licensed Software Includes:

NEXIQ 125032 HEAVRY TRUCK ADAPTER

• Heavy Duty plastic carrying case
• 6/9-pin, & OBD II cables
• USB Cord
• Instruction Manual
• The NEXIQ is compatible with all of the same software that the USB Link is, including Cummins Insite, CAT ET, International ServiceMaxx, Detroit Diesel Diagnostic Link, Eaton, Wabco, Bendix, Mack, Volvo, and all the rest.

OEM Software -The following software is compatible, licensed, and configured to use out of the box for an additional cost:

• Eaton Service Ranger - Used for Eaton Transmissions
• Diamond Logic Builder - Used for International cab computers (ESCs)
• Master Diagnostics - Used for International pre-MaxxForce (2007 & older) engines
• Meritor Transoft - Used for Meritor Transmissions
• Meritor Wabco - Used for Meritor ABS systems
• DDEC Reports - Detroit Diesel trip & lifetime reports
• ACom Diagnostics - Used for Bendix ABS systems
• Driveline Angle Analyzer - Developed by Spicer, this tool helps you figure out the correct angle and position of your driveline. Very handy when shortening or lengthening a wheel base, or troubleshooting vibration problems.
• Wabash ABS - Used for all Wabash Trailer ABS systems
• Haldex ABS - Used for Haldex Trailer ABS systems

Included Software in this kit is the PocketFleet Diagnostics Full Heavy Duty Edition with OBDII - This is an UNIVERSAL software program that reads both truck & auto data. It not only reads engine data, but it reads everything else, including:

• Gas & Diesel
• Transmission
• ABS
• Cab Body Controllers
• ..and more!

Here is just a partial list of all the things you can do with this program:

• View both active & inactive codes for engines, transmissions, DPF systems, and more.
• Clear inactive codes
• View the "live" data including all sensor and electronic data (Such as oil pressure, coolant temperature, status of on/off switch, etc...)
• Force live regen's (On models that use OBD-II Only)
• View engine data such as VIN #'s, engine hours, fuel used, miles driven, and much more.
• Converts MID/PID/FMI codes to OEM codes up to 2012 models (More codes are constantly being converted)
• Print DTC (Diagnostic Trouble Codes), current parameters, engine data, and more.
• For International Engines - Perform Key On Engine Off Standard & Injector tests.
• Monitor live data coming across the various computers.

The version installed on this laptop does both Heavy Duty & Auto. Here is a short list of vehicles that it has been tested on:

• 2012 Isuzu NPR
• Cummins - All Engines
• Detroit Diesel - All Engines
• CAT Engines - On highway Only
• John Deere 4045H Aux Engines
• John Deere Agricultural Farm Tractor
• John Deere 644K WHeeled Loader
• MBE900 Engines
• MBE4000 Engines
• CASE 540 & 620E
• Bendix
• Wabco
• Eaton - Transmission, VORAD, & ABS
• Freightliner
• International - Cab & Dash
• Sterling
• Peterbilt
• Tackless
• Carleston
• VM Midsize Truck
• Volvo 770 Grader
• 2011 Volvo FH12
• Auto - All Domestics with OBDII (1996 to present)
• Auto - All Imports with OBDII (1996 to present)
• ... and TONS more. Just email us if you have any questions!

This software includes 12-months of support & free updates. After 12-months, the fee is $175.00 per year. You do NOT have to pay this. You can just keep the current version you are on, but you will not receive and new code updates or software updates.

This laptop has been professionally refurbished! Not only have all dust covers, port covers, and every inch of this laptop been meticulously cleaned, but this laptop it self looks awesome! The entire top cover, hinges, and handle have been rhino lined to give not only an even BETTER level of protection, but looks great too! Some specifications on this laptop include:

• Windows 10 Pro Installed with all Updates. We are an authorized Microsoft Refurbisher, so you receive a genuine product key. Don't be fooled by others that sell software with out genuine product keys!
• DVD/CD Drive
• 4 GB RAM
• Dual Core CPU running at 1.66 GHz each
• Integrated Wifi
• Integrated Bluetooth
• 224 GB SSD (Solid State Drive). The solid state drives make this computer "ultra" fast, as it goes from off to working in Windows in less than 45 seconds. Compare that to a "regular" hard drive that takes around 2 minutes. This SSD drive is brand new, and comes with a 3-year warranty! (Through SSD manufacturer)
• 4 USB Ports
• 1 Serial Port
• 2 PCMCIA slots (1 is Express)
• SD Card reader
• 1394 Port
• Docking Port
• Battery holds a charge for 2+ hours
• AC Adapter included (used)
• Exact model number of this laptop is: CF-53

PC-to-vehicle interface compatible with multiple software applications, minimizing your investment in multiple brand-specific diagnostic interfaces.

• Class 1 Bluetooth provides up to 100 feet of wireless freedom
• Flexible configuration supports wired or wireless connectivity
• Compatible with applications that diagnose engines, transmissions, ABS, instrument panels and more
• Reduce reprogramming times with direct USB connection
• Mixed fleet capabilities with broad protocol support
• Quick access to vehicle data for maintenance or management reports
• Quickly attaches to vehicle's diagnostic connector
• No messy cables to untangle or get in the way with Bluetooth
• Easy portability increases flexibility
• May be used with desktop PC or laptop

FEATURES:

• RP1210A, RP1210B, RP1210C and J2534 API support
• Bluetooth vehicle-to-PC wireless connectivity
• USB vehicle-to-PC connectivity
• Protocol coverage for automotive to heavy duty vehicles:
  • 3 CAN - J1939/CAN125/CAN250/CAN500/CAN1000
  • Automatic bit rate detection for all standard CAN channels
  • Single Wire CAN
  • Fault Tolerant CAN
  • J1587/J1708
  • J1850
  • ISO 15765 (Diagnostic CAN)
  • ISO 14230 (KWP2000 over ISO9141)
  • J2534
  • ALDL
  • ATEC 160 (160 baud)
• Supports Windows® XP, Windows® 7 32- and 64-bit versions, and Windows® 8 32- and 64-bit versions

COMPATIBLE SOFTWARE:

• Detroit Diesel Diagnostic Link
• CAT Electronic Technician (On-Highway only)
• Cummins Insite
• International - ServiceMAXX Fleet Pro
• Hino eXplorer
• Volvo PTT (Premium Tech Tool)
• VCAD Elite Mack/Volvo
• V-MAC Service Tools
• Allison DOC® For PC-Service Tool - Protocols Supported: J1939, J1708/J1587, and J1850
• Allison DOC® For Fleets (1000/2000) - Protocols Supported: J1939, J1850
• Allison DOC® For Fleets (3000/4000) - Protocols Supported: J1939, J1708/J1587
• Eaton ServiceRanger
• Bendix ACom
• WABCO Toolbox
• Freightliner ServiceLink
• International ABS
• International DLB
• International Intune
• International IPC v2.02
• Pocketfleet Software (PF-Diagnose)

INCLUDES:

• NEXIQ USB-Link 2
• 6-pin/9-pin vehicle Y-adapter
• 15' USB cable
• Quick start reference guide
