FCAR FD505 Wheel Aligner
$14 995.00
In stock
Product Details

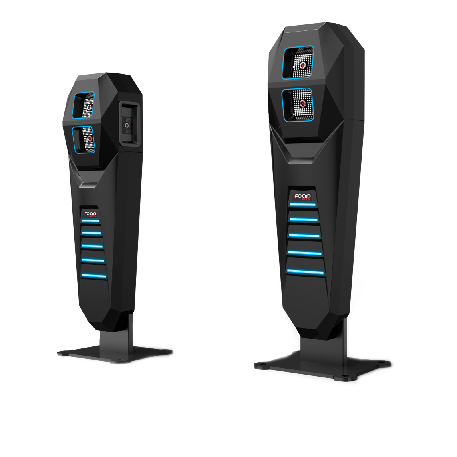

The model FD-505 wheel aligner, a professional equipment, can accurately measure the wheel alignment parameters without space limitation. It can measure front and rear toe-in, front and rear camber, caster, kingpin inclination and thrust angle accurately.
The 5D generation wheel aligner are features on portability, accuracy, easy installation and module calibration. The aligner has built-in module calibration for suspension, electromagnetic suspension, EPS, ESP, EBA, EBD, ABS, ACC and TPMS.
Features
- Built-in five HD cameras to scan target from difference angle
- Automatically adjust camera to measure oversize vehicle
- Built-in faster processor to handle image recognition and angle calculation
- Support for multiple display on Android tablet, TV or smartphone
- Work on your any existing lift
- One man operation, easy and convenient
| Item | Precision | Range |
| Camber | ±0.01° | ±80 |
| Caster | ±0.03° | ±19° |
| Front wheel inclination angle | ±0.02° | ±19° |
| Toe | ±0.0 | ±20 |
| Rear wheel thrust angle | ±0.02° | ±20 |
| Rear wheel axle deflection | ±02° | ±20 |
| Track width difference | ±0.02° | ±20 |
| Front setback | ±0.02° | ±20 |
| Rear setback | ±0.02° | ±20 |
|
No. |
Type |
Name |
Qty |
No. |
Type |
Name |
Qty |
|
1 |
Main Unit |
FD-505 Tower |
2 |
11 |
Accessories |
Targets A(Rectangle) |
4 |
|
2 |
F7S-RK Tablet Computer |
1 |
12 |
User’s Manual |
1 |
||
|
3 |
Tongs |
Four Jaw Chuck |
4 |
13 |
Packing list |
1 |
|
|
4 |
Steering Wheel Holder |
1 |
14 |
Assembly Case |
2 |
||
|
5 |
Turntable |
2 |
15 |
DC Switch Power Supply |
1 |
||
|
6 |
Brake Holder |
1 |
16 |
Software |
1 |
||
|
7 |
Transition Block |
2 |
17 |
Packing box |
2 |
||
|
8 |
Wedge Pads |
2 |
18 |
PE Bag |
8 |
||
|
9 |
Accessories |
Screw |
10 |
19 |
Power Cable |
1 |
|
|
10 |
Targets B(Triangle) |
4 |
20 |
Data Cable |
2 |
