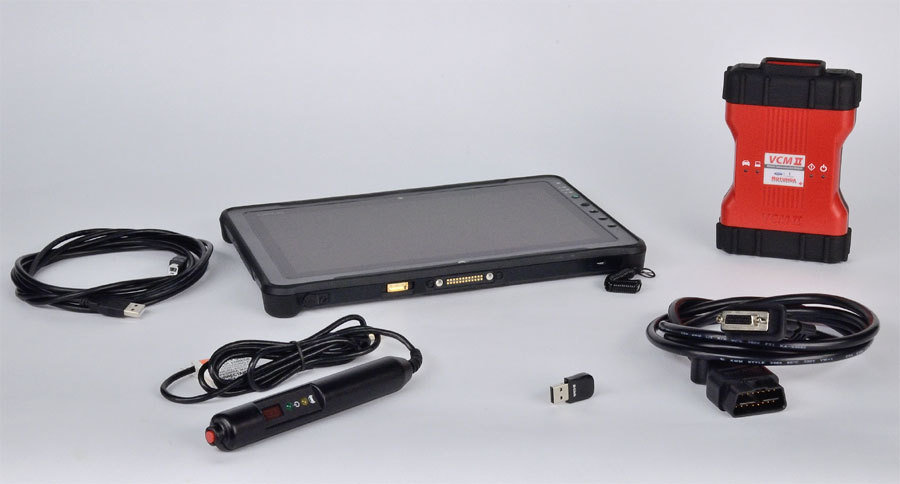

Ford Integrated Diagnostic System (IDS)

The Ford IDS is the only equipment that provides complete diagnostic coverage, including module programming and key programming of 1996 to current and future Ford and Lincoln vehicles. The IDS will operate on multiple PC platforms meeting the minimum specifications and having a valid IDS software license subscription. IDS software license subscriptions are available online at the PTS, Ford Fleet, or Motorcraft service website.

Vehicle Communication Module II (VCM 3)
The VCM 3 communicates with Ford and Lincoln vehicles via the 16-pin diagnostic link. This device is the core of vehicle diagnostics. An IDS software license subscription (sold separately) provides access to the software which uses the VCM II hardware to perform vehicle diagnostics.

Getac F-110 Ruggedized Tablet
This rugged tablet is the new preferred tablet from Rotunda that meets or exceeds the specifications to run the IDS software with the VCM 2 or VCM 3. See item 164-R9812 to purchase separately. The Getac F110 with sunlight readable touchscreen from Rotunda comes with a customized configuration of 2 USB ports, Windows 10 64-Bit and Internet Explorer 11 to be completely compatible with IDS. The 256 GB solid state drive (SSD) provides fast and quiet operation while providing superior performance in the shop's mobile environment. The F110 is designed to be drop, dirt and spill-resistant which are common in a shop environment. The F-110's rugged case helps it meet military standard 810G and IP65 certification for 4' drop, shock, vibration, dust, etc.

Customer Flight Recorder (CFR)
You must have a CFR pendant to enable the CFR functionality. The CFR pendant is a new accessory exclusively for the VCM 3 that allows technicians to capture and record specific vehicle data without requiring the presence of a laptop computer in the vehicle. The CFR pendant can be used for long test drives for hard-to-diagnose concerns, running on vehicle power there are no batteries to charge! Recording can be activated by the red button on the pendant or automatically based on specific vehicle data values.

FEATURES

• The VCM 3 is designed to work with IDS
• All VCM 3's will operate as a Customer Flight Recorder (CFR) with an optional pendant cable 164-R9806 to replace the functionality of the Vehicle Data Recorder (VDR)
• Industry standardized J1962 Data Link Connector (DLC) and USB cables allow the user to realize a lower cost of ownership compared to the VCM
• Includes enhanced 802.11n wireless that minimizes dependencies on service department wireless infrastructure
• New wireless software integrated with IDS installation package
• Wireless functionality preferred for all IDS functions including module reprogramming. USB wired connections are only required to update the VCM 3 loaded code firmware and to set up the VCM 3 to function as a Customer Flight Recorder (CFR)
• Improved durability
• Smart Power Management system to protect the VCM 3 in extreme environments

NOTE: * Software license sold separately.
