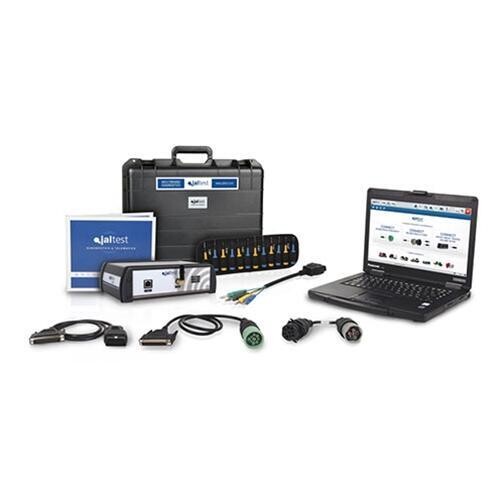

Jaltest Commerical Vehicle Diagnostic Kit w/Panasonic CF-53 is the appropriate device to perform diagnostics on your on highway trucks, school buses, light commercial trucks, trailers, and reefer units. Jaltest Commercial Vehicle features multi-brand and multi-system diagnostics with a wide coverage on the different electronic systems installed on Commercial Vehicles.

• Information on connectors: Jaltest informs you about which connector to use and its location on the vehicle.
• Diagnosis:Recording and description of the errors registered on each of the control units. AUTOMATIC DETECTION OF THE COMPLETE ERRORS LIST ON THE SYSTEMS INTEGRATED ON THE VEHICLE.
• Actuation of Components: Possibility of interacting and sending orders on the different systems using Jaltest: such as fan activation, cylinders cutout, compression test and operational checking of the different mechanisms, etc.
• Values Measuring: Measuring and Displaying of up to 8 values at the same time. Information on the ranges of reference values .
• Parameters: Configuration of the different parameters.
• System Data: Information on the system configuration and ECU data.
• Errors Clearance: Errors clearance on the control unit and turning off of failure lamps.

Protocols:

• OBD
• OBDII
• J1939
• J1708
• EURO IV
• EURO V
• RP1210

Kit includes:

• Jaltest Link RP 1210 Kit Multi-Pin Set (part # 29366)
• Commercial Vehicle Software License w/1 Year of Activation (part # 29300 & 29053)
• Panasonic CF-53 Ruggedized Toughbook (Part # CF-53)
• Jaltest Info Online Annual (part # 29427)
• Setup and Formatting
• Training (available through Jaltest)

Functionality

• 54,000+ Bi-Directional Testing Procedures & Parameter Resets
• 20,000+ Troubleshooting & Repair Guides
• 14,000+ Circuit Diagrams
• 65,000+ Symptom Diagnostic Troubleshooting Guides
• 57,000+ Technical Specification Data Resources (Elec. Sys)
• 3,000+ System Technical Data Resources (Mech & Elec. Sys)
• 2,000+ Customizable PM and Service Scheduling Processes
• 8,000+ Calibrations
• 200+ Vehicle Diagnostic and System Release or Reset Procedures
• Diagnostic Report including Vehicle, Operational, and Diagnostic Information

Truck Coverage:
