Jaltest V9 LinkDiagnostic Adapter Hardware Kit with Multi-Pin Set
$1 059.95
In stock
Product Details

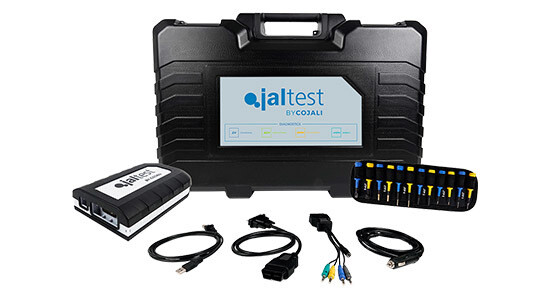

It Includes:
Jaltest DATA-LINK Interface
Software Activation. DATA-LINK license of use
Transport hard case Jaltest DATA-LINK
USB cable
Deutsch 6 pin diagnostics cable
OBD diagnostics cable
Deutsch 9 pin type 2 green diagnostics cable
Multi-Pin Cable set to pin out other connections
JALTEST
DATA LINK WILL READ FOLLOWING SOFTWARE:
Allison Universal Allison DOC®
Ametek Diagnostic Link
Bendix ACom Diagnostics
Bendix ACom PRO
Caterpillar Electronic Technician
Cummins INSITE
Daimler Trucks Diagnostic Link
Dana Dana Diagnostic Tool
Detroit Diesel Diagnostic Link
Eaton ServiceRanger
Freightliner Diagnostic Link
Haldex Haldex Trailer ABS Diagnostics
International Diamond Logic Builder (DLB)
JCB ServiceMaster 4
Kenworth DAVIE4
Mack Tech Tool
Mack V-MAC III Service Diagnostics
MBE Diagnostic Link
Meritor Wabco TOOLBOX
MWM ServiceMaxx Pro
Navistar ServiceMaxx Pro / NED
Noregon JPRO
Paccar DAVIE4
Perkins Electronic Service Tool
Peterbilt DAVIE4
PSI PSI PowerLink
Sterling Diagnostic Link
TRW Navistar TRW ABS 355
UD Truck Tech Tool
Volvo Tech Tool
Western Star Diagnostic Link
ZF Meritor TransSoft
Zonar Diagnostic Link
Yale PC Service Tool
Hyster PC Service Tool
Shibaura IHI Shibaura Electronic Service Tool
It allows to connect via Bluetooth and using the USB cable.
Integrated Bluetooth connection with transmission capacity up to 50m
Rugged design
Certifications:
FCC
CE
Ro
Operating supply voltage 8 V DC — 28 V DC
Power consumption of vehicle's battery 7 watts
Dimensions (length x width x height) 183.5 x 131.3 x 55.7 mm
Weight (without cables) 1.217 kg
Service temperature 0 °C – 40 °C
Relative air humidity 90 % (at 25 °C)
ISO 9141-2
SAE J1850 VPW
SAE J1850 PWM
SAE J1708
SAE J2534
SCI Haldex
CAN ISO 11898, ISO 15765-4 (OBD)
CAN Single Wire
CAN Low Speed
RP1210
PASS THRU
FASTER CONNECTION RATE (BAUD RATE)
Improved performance and communication with a speed increase in the data transfer and processing, both in VCI-PC and VCI-system.
USB AND SUBD26 CONNECTOR PROTECTION (POKA YOKE MODEL)
Protection and integrity of the connectors that have a mistake-proofing design.
ROBUST ELECTRONICS AND ENHANCED COMMUNICATION CAPABILITIES
Greater connectivity, new supported communication protocols and extended multiplexor.
IMPACT ABSORPTION
Design with a rugged covering that cushions small bumps, protects against scratches and enables the seal closure of the device, preventing the inlet of dirt and water (IP40).
COMPACT AND LIGHT
Reduced weight, Jaltest V9 is 76% lighter than its predecessor. It offers the possibility of attaching a lanyard to facilitate the use of the device.
SOFTWARE NOT INCLUDED
